Sharing & Printing

Control printing, set up Web QR and a QR code on the photo, and write the email guests receive with their photos.

18 min read Updated 8 Nov 2026 Watch the video (3:08)

This article covers everything that gets a finished photo into the guest's hands: printing, the Web QR code, a QR code printed on the photo itself, the public gallery, and the email or text message (SMS) guests receive. These are per-event rules. The printer, the cloud and the email account are set up once for the whole app.

How guests receive photos, end to end

A photo reaches the guest through four layers. Set them up in this order.

LayerWhereWhat you decide
1. App-wide setup (once per computer)Settings › QR Share and Settings › HardwareWhere photos are uploaded (Web QR), the local QR server, the email sending account, and which printers are connected. See QR Share settings and Printer & audio settings.
2. Result delivery (per event)GENERAL › Settings › RESULT DELIVERYWhether guests wait at the booth (Direct) or leave and get the photo later (Email a link, Text a link, Manual pickup, Scan a QR now, Get it on WhatsApp). See Event settings.
3. Sharing rules (per event)OTHERS › Printing, Sharing and OverlayPrint limits and PIN, when photos are uploaded, a QR on the printed photo, and the email and SMS text. Covered in this article.
4. Buttons on the Result PageDESIGN › Result PageWhich actions the guest can tap: Print, Share (several share ways in one button), Share: Web QR, Share: Local QR, Share: Email, Share: SMS (since 5.9.2.0), Share: WhatsApp, Reprocess and so on. A feature only shows up for guests if its button is on the page. Since 5.8.0.0 the share actions start with "Share:"; before that they were called Web QR, Local QR and Send Email. See Page Designer.
Note

Every result is also saved in the event gallery, whatever delivery you pick. If an upload or email fails, staff can still find the photo there and reprint it or show its QR code. See Gallery.

Before you start

  • At least one printer is added and turned on in Settings › Hardware, if you plan to print.
  • Web QR is set up and tested in Settings › QR Share, if you plan to use QR codes or email. The QR on the photo, Email a link and the email itself all depend on it.
  • An email sending account is set up in the same place, if you plan to send emails.
  • SMS Share (Twilio) is set up in the same place with your own Twilio account, if you plan to text guests their link (since 5.9.2.0). See SMS Share with Twilio.
  • The event is open in the Event Editor.

Printing

Open OTHERS › Printing. The page has three groups: Print Counter & Limits, Print Flow and Print PIN.

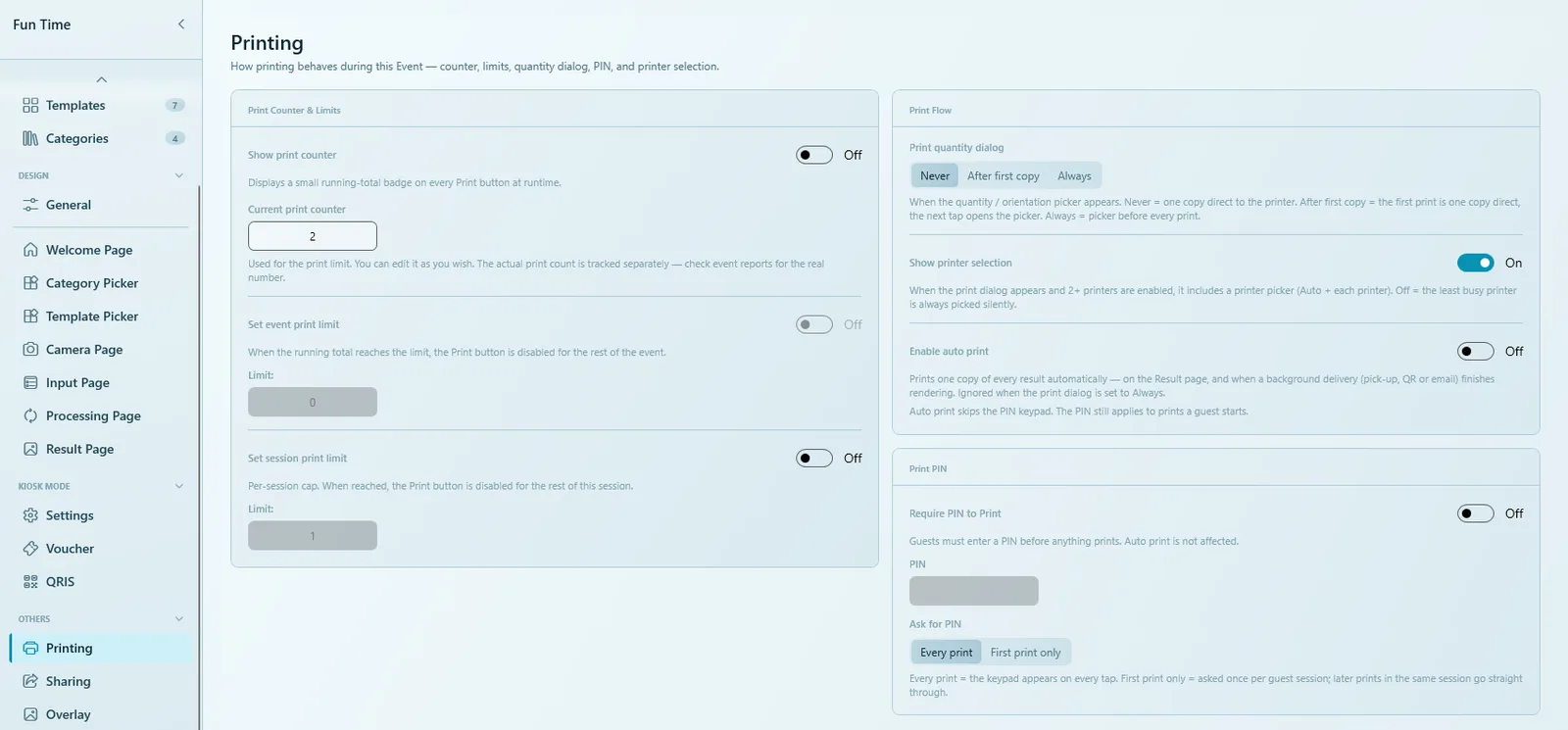

The Printing page of an event, with print counter and limits, print flow and print PIN
OTHERS › Printing: counter and limits on the left, print flow and PIN on the right.
OptionWhat it does
Show print counterShows a small badge with the running print total on every Print button at the booth.
Current print counterThe number the print limit counts against. You can edit it: to start again (for example on a new day), type 0. There is no separate reset button. The real number of prints is tracked separately in the Report.
Set event print limitWhen the counter reaches the Limit:, the Print button is turned off for the rest of the event. Useful when the client paid for a fixed number of prints. Since 5.9.0.0 it works with the counter hidden too: prints are counted either way. (Before 5.9.0.0 it was only available while Show print counter was on.)
Set session print limitA cap per guest session. When it is reached, the Print button is turned off until the next session. Works whether or not the counter is shown.

When a limit is reached, guests see "Print limit reached for this event." or the Print button is greyed out. The copies picker never lets a guest choose more copies than are left. Reprints from the gallery don't count against the limits; the Report shows them as Gallery Prints.

With the Payment Gateway add-on, guests who have used their session prints can buy more on the spot: the Print button becomes Print more (since 5.9.0.0). See Extra prints.

OptionWhat it does
Print quantity dialogWhen the guest sees the copies/orientation picker. Never: one copy goes straight to the printer. After first copy: the first print goes straight through, later taps open the picker. Always: the picker opens before every print.
Show printer selectionWhen the print dialog opens and two or more printers are enabled, it also lets the guest pick a printer (Auto or a specific one). When off, Q-Booth always picks the least busy printer by itself.
Enable auto printPrints one copy of every result automatically: on the Result Page, and also when a background delivery (pickup, QR or email) finishes. Ignored when the print dialog is set to Always.
Show "sent to printer" messageOff by default (since 5.8.3.0). After each print, a short message tells the guest it was sent to the printer. It closes by itself after 5 seconds. Useful when the printer is far from the booth.

Turn on Require PIN to Print and type a PIN if staff should approve every print. Under Ask for PIN, choose Every print (the keypad appears on every tap) or First print only (asked once per guest session; later prints in the same session go straight through).

Important

Auto print skips the PIN keypad. The PIN still applies to prints a guest starts by tapping Print.

Tip

A single template can always print to its own printer: open the template's advanced settings (the gear icon in CONTENT › Templates) and pick a printer. If that printer is unavailable during the event, printing falls back to Auto. See Templates.

Other print notes

  • GENERAL › Settings › FILES › PRINT ARCHIVE FOLDER keeps a digital copy of every print.
  • A Flipbook prints the whole book on one tap, on one printer, with no picker. Each sheet counts as one print.
  • An Art template (Art Drawing in Easy mode, or Art Studio) shows the video first on the Result Page; printing prints the drawing. No QR code is printed on Art results (since 5.9.6.0).
  • The Print button stays off for 5 seconds after each print (since 5.8.3.0), so quick taps don't send extra copies.
  • Q-Booth only knows that the photo was sent to the printer. It can't tell whether paper actually came out (jam, no paper, printer off). To check, look at the printer or the Windows print queue.
  • If no printer is set up, guests see "No printer is configured." Add one in Settings › Hardware › Printer.

Web QR

Open OTHERS › Sharing. The WEB QR group decides when photos are uploaded so guests can scan a QR code and download them on their phone.

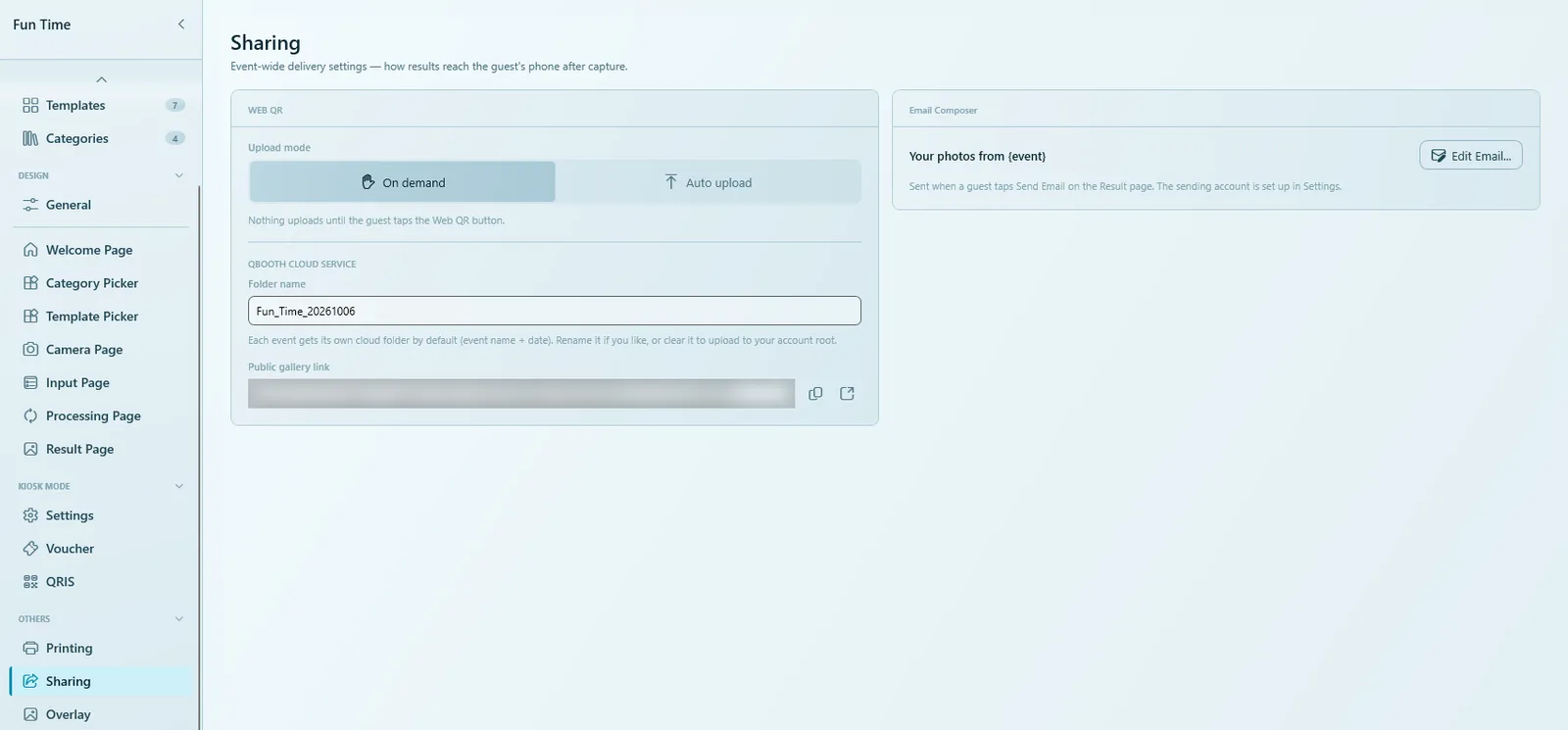

The Sharing page with upload mode, cloud folder name and the Email Composer summary
OTHERS › Sharing: upload mode and cloud folder on the left, Email Composer on the right.
OptionWhat it does
Upload mode › On demandNothing is uploaded until the guest taps the Share: Web QR button. Saves internet data; the guest waits a moment for the upload.
Upload mode › Auto uploadEvery result is queued for upload as soon as it is made, so the QR code is usually ready by the time the guest asks for it.
QBOOTH CLOUD SERVICE › Folder nameEach event gets its own cloud folder (event name + date). Rename it if you like, or clear it to upload to your account root.
Public gallery linkA link to all of the event's uploaded photos. Use the buttons beside it to copy it or open it in a browser, and send it to your client after the event. The same link is on the website too: log in to lumaqube.com, open Image Gallery and click Copy (or Open) on that gallery. The link uses your gallery name, not your licence key (since 5.9.4.0), so it is safe to share. It appears once the app has been online; a booth that has never connected shows no link yet.
Note

If you rename the folder after photos were uploaded, those photos stay in the old folder. Keep the old gallery link to reach them.

Sharing a photo by hand from the event's Gallery, the booth's gallery button or Report › View Results (Share › Web QR, WhatsApp or Email) uploads into the event's folder too (since 5.9.0.0). Before that, a photo that had never been uploaded went to the account root (the main gallery) instead. A photo that was already uploaded keeps its first link and isn't uploaded again.

The gallery's Combined QR button uploads into the event's folder too (since 5.9.6.1). On older versions, a session whose upload failed (the job went Dead, for example because the internet was down) and was then re-made with Combined QR lands in the account root (the main gallery). Workaround on older versions: use Share › Web QR in the gallery, or Retry the dead job in the Job Monitor (Ctrl + Shift + J). Both upload into the event's folder.

Important

Photos on the QBooth cloud service are kept for 21 days, then deleted. After that, the QR links and the gallery no longer show them. If you or your client need the files, download the event from the member dashboard (Image Gallery › Manage) before then.

A QR Code element on the Result Page also forces automatic upload, even when Upload mode is On demand, because its link has to work. The same goes for a QR printed on the photo.

Q-Booth can also show a Local QR: the guest's phone downloads the photo straight from the booth computer over the local Wi-Fi network, with no upload. It is set up in Settings › QR Share and used through a Share: Local QR button on the Result Page.

Note

Scan a QR now (a delivery option in RESULT DELIVERY) works for every template on the QBooth cloud service. On an FTP Web QR it only works for AI Online and AI Offline templates; other templates fall back to Direct.

A Lenticular sheet and Flipbook page sheets are shown on the Result Page but can't be shared by QR or email; the QR and email buttons hide on them. Guests get the separate photos or the video instead.

The public gallery page can play itself on a TV or projector at the event: photos and videos, picking up new uploads while the event runs. It is a web page, so any screen with a browser works (a second laptop, a smart TV, the booth's own second screen). There is nothing to install and nothing to set in Q-Booth beyond Web QR on the QBooth cloud service.

  1. Open the event's Public gallery link in the browser (from OTHERS › Sharing, or Image Gallery › Open on lumaqube.com).
  2. Tap the menu button (three lines, top left) and open Display Mode:
    • Grid Gallery: the normal grid (the default).
    • Slideshow: one photo or video at a time, full screen, on a black background. Moving the mouse shows back, pause and next. To change how long each one stays (10 seconds by default), click the top-right corner of the screen: a hidden Slideshow Settings box opens. Set Delay (seconds) and click Save.
    • Animate: photos and videos float across the screen at random sizes and speeds.
    • QR Codes: On/Off: puts a QR on each photo, so guests can scan it off the screen to get that photo on their phone. Off by default.
    • Toggle Dark/Light Mode.
  3. Press F11 in the browser for true full screen.
  • New uploads appear by themselves within about 30 seconds, with no refresh. Slideshow jumps to the newest one when it arrives.
  • Videos play muted and loop.
  • Slideshow and Animate cycle the newest 20 items plus anything uploaded after the page was opened, not the whole event history.
  • The chosen mode is in the link (mode=slideshow or mode=animate), so you can bookmark it. The delay and the QR setting are remembered by that browser only.
  • It only works with the QBooth cloud service, not with your own FTP or other upload targets. Uploads still go away after 21 days.
Important

Open the page after the first photo has uploaded. If the event gallery is empty when the page opens, it shows "No images found." and does not pick up new uploads. Reload the page once photos are in.

For a slideshow that reads straight from a folder on the booth PC instead (no internet needed), use Also copy to: on the result folder (see Event settings) with your own slideshow program.

QR code printed on the photo

You can print a scannable QR code onto the photo itself, so guests can download the digital copy later from the print. This switch lives on the Overlay page, next to the frames.

  1. Open OTHERS › Overlay.
  2. On the QR on Result card, turn on Print QR code on result.
  3. Click Configure on the card (since 5.9.0.0; the card also shows the current position and size). In older versions, click Position & Size..., which appears once the switch is on.
  4. Choose a Position (Top-Left, Top-Right, Bottom-Left or Bottom-Right), then set Margin X, Margin Y and QR size. You can also drag the QR in the preview, or drag a corner to resize it.
  5. Save the event and make a test print. Scan the QR with your phone once the upload has finished.
Important

While this switch is on, every result is uploaded automatically, even if Upload mode is set to On demand. The QR on the print points to a link that is made in advance, and it starts working once the photo has finished uploading.

Each template can follow this setting or change it in its own QR Overlay group in the studio: Default (follow the event, or the app setting outside an event), Disabled (no QR on this template) or Custom (its own position and size). For overlays and frames, see Event overlay.

Email Composer

The Email Composer writes the email a guest receives when they tap Share: Email on the Result Page (or a Share button with Email ticked; called Send Email before 5.8.0.0), or when they choose Email a link as their delivery. The email always includes a link to the photos.

  1. In OTHERS › Sharing, click Edit Email....
  2. Fill in the Subject, the Message and the Sign-off. Click a Variable: chip (Event name, Photo link, Guest name) to insert it where you are typing.
  3. Set the Button Label (for example "View your photos"). It is shown as a button above the link; leave it empty for a plain link.
  4. Optionally turn on Ask guest for their name, add a logo, and add up to two Cc and two Bcc addresses under Copy Others (for example the event planner).
  5. Check the live Preview, type your own address and click Send Test Email.
  6. Click Save.

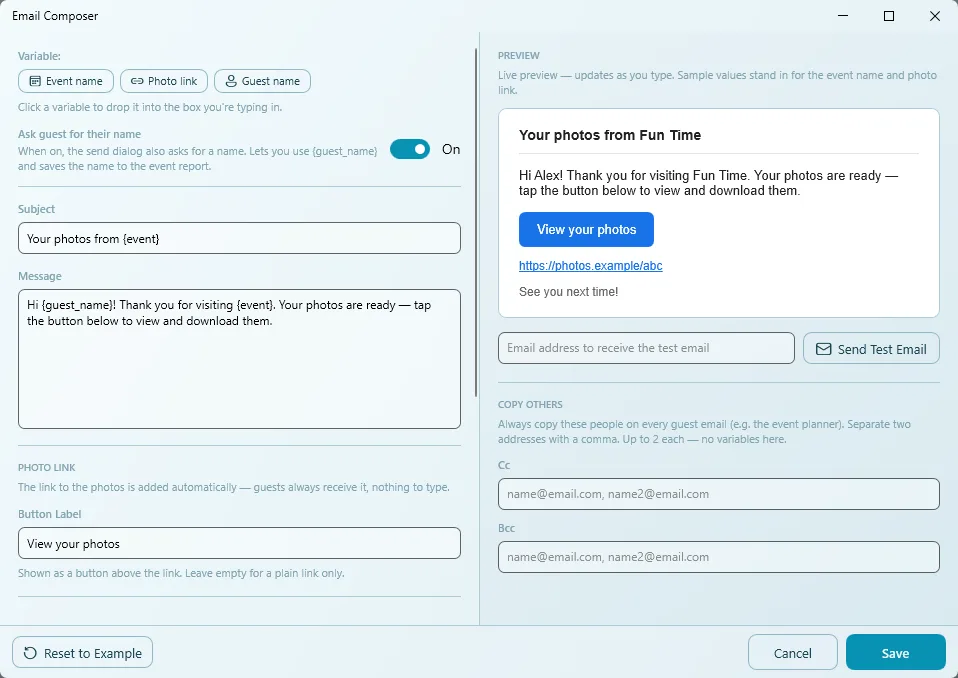

Email Composer window with variables, subject, message, button label, live preview and Cc/Bcc fields
The Email Composer with its live preview and test email.
OptionWhat it does
Ask guest for their nameThe send dialog also asks for a name. This lets you use {guest_name} and saves the name in the event report (Contacts).
Subject, Message, Sign-offThe email text. Variables: {event} = event name, {link} = photo link, {guest_name} = guest's name.
Photo Link / Button LabelThe photo link is added automatically. The button label is optional.
LogoAttach logo to email, with Placement Top or Bottom.
Copy OthersAlways copy these people on every guest email. Up to 2 addresses each for Cc and Bcc, separated by a comma. No variables here.
Send laterUnder Cc / Bcc (since 5.9.0.0). Hold every guest email from this event until a date and time you pick. See Send the emails later.
Reset to ExamplePuts back the example text.
Note

There is no separate "enable email" switch in the event. Guests can send email when the Result Page has a Share: Email button (or a Share button with Email ticked) and an email account is set up in Settings › QR Share. Without an account, guests see "No email account is set up."

Emails are sent in the background: the guest sees "Your photos will be emailed shortly." If the internet is down, the email is retried later.

Send the emails later (since 5.9.0.0)

Use this when the guests should get their photos on a later day, for example the event is on the 1st and the emails go out on the 5th.

  1. In OTHERS › Sharing, click Edit Email....
  2. Under Cc / Bcc, turn on Send later and pick a date and time.
  3. Click Save. The Sharing card shows "Sends on …".

Every guest email from this event then waits until that time, and the guest is told the date on screen.

Important

The app must be open and online at that time, on the same PC that ran the event: the emails wait in that PC's background job list. If the PC is off then, they go out the next time the app opens. Keep the result photos on that PC until then; a deleted photo can't be sent.

  • A time that has already passed means the emails go out right away.
  • To send early, open the Background Jobs window, select the waiting email and press Force Now.

SMS Composer (since 5.9.2.0)

The SMS Composer sets the text a guest gets when they tap Share: SMS on the Result Page or choose Text a link as their delivery. It is used for re-sends from the event gallery and View Results too. The texts go out through your own Twilio account, set up once in Settings: see SMS Share with Twilio.

  1. In OTHERS › Sharing, click Edit SMS... (under the Email Composer).
  2. Type the Message. Variables: Event name {event} and Photo link {link}. If the text has no {link}, the link is added at the end, so the guest always gets it.
  3. Check the length under the box: it says how many SMS the text takes.
  4. Check the phone-style Preview, type your own number and click Send Test SMS. It uses the Twilio account from Settings, with a sample link.
  5. Click Save. Reset to Example puts back the example text.
Important

One SMS holds 160 characters, or only 70 when the text has an emoji or a letter outside the basic set (Chinese, Thai, many accented letters). Longer texts are split, and Twilio bills every part. The photo link counts too (about 80 characters). Shorten the text or remove emoji until the composer says 1 SMS.

New events start with "Your photos from {event} are ready: {link}". Events made before 5.9.2.0 keep the old fixed text until you edit and save it.

Tips

  • For a self-service booth, combine Set session print limit with Kiosk Mode, so each paid or voucher session gets a fixed number of prints.
  • Use Auto upload on fast internet and On demand on a weak or metered connection.
  • Before the event, make one complete test: print, scan the Web QR, and send an email to yourself (and a test SMS, if you use it).
  • For a live photo wall at the event, open the public gallery in Slideshow or Animate on a second screen.

Common problems

The Print button is greyed out at the booth.

The event or session print limit has been reached. Raise the Limit:, or type a lower number (for example 0) in Current print counter. Right after a print, the button is also off for 5 seconds (since 5.8.3.0).

"Did it print?" The guest sees no sign that the Print tap worked.

Q-Booth only knows the photo was sent to the printer, not whether paper came out. The brief flicker on screen is Windows' own "Printing page 1" box. If the printer is far from the booth, turn on Show "sent to printer" message in OTHERS › Printing (since 5.8.3.0). To confirm paper came out, check the printer or the Windows print queue.

The booth prints more copies than asked.

Several copies from quick taps on Print were fixed in 5.5.0.0, and since 5.8.3.0 the Print button stays off for 5 seconds after each print. Prints of every photo that nobody asked for mean Enable auto print is on.

Guests see "No printer is configured."

Add a printer in Settings › Hardware › Printer.

No QR code appears on the printed photo.

Check that Print QR code on result is on, that Web QR is set up in Settings (otherwise no QR is added), and that the template's QR Overlay is not set to Disabled.

Guests cannot send email.

Make sure the Result Page has a Share: Email button (or a Share button with Email ticked), the email account in Settings › QR Share passes its test, and Web QR is set up (the email contains a link to the uploaded photo).

Twilio charged 2 SMS per guest.

The text is longer than one SMS, so it is split and Twilio bills every part. Shorten it or remove emoji in OTHERS › Sharing › Edit SMS... until the composer says 1 SMS. See SMS Composer.

Guests see "SMS isn't set up."

Share: SMS needs Web QR and SMS Share (Twilio) set up in Settings › QR Share. See SMS Share with Twilio.

Local QR says the server is not running.

Pick a session in Settings › QR Share › Local QR and click Save Settings. Since 5.9.3.0 picking a session starts it at once, and Off at the top of that list turns it off.

The gallery slideshow says "No images found." and never shows new photos.

The page was opened while the event gallery was still empty, so it doesn't pick up new uploads. Reload the page once the first photos are in. See Slideshow and Animate.

I turned on a print PIN but auto print still prints without it.

That is expected: auto print skips the PIN. Turn off Enable auto print if every print must be approved.
