Augmented Reality Studio

Let guests pose with characters that walk into the live camera view, from sample or green-screen clips, with an optional BTS video.

14 min read Updated 8 Nov 2026 Watch the video (4:29)

Augmented Reality puts characters next to your guests: a football star, a cuddly koala, your brand mascot. The character walks into the live camera view, waits, and poses with the guests. When the photo is taken, it freezes in place. Guests get the photo and, if you want, a behind-the-scenes video.

How it works

  • A character is a short video of someone walking in and waiting, shot on a green screen or saved with a transparent background (WebM or MOV with alpha).
  • It plays live over the camera at the booth, so guests can see where to stand.
  • When the photo is taken, the character is frozen into the picture.
  • You can also add still images on top: a frame, a logo or a prop.
Note

Augmented Reality Studio needs Q-Booth 5.6.1.0 or newer; on older versions it isn't there, so update first. Pro includes it. On Basic and Advanced it is an add-on: you can open and use the studio, but without the add-on the menu item shows a DEMO badge and everything it makes (the photo, the BTS video and the original photo) gets the demo watermark. A demo (trial) license always gets the watermark. See the Products page.

Open Augmented Reality Studio

Open Studio › Augmented Reality (below Flipbook), or use the Studio Selector. Templates are saved as .qsg.

  • Left: template settings: Template, Aspect Ratio, Overlay, QR Overlay, Camera Filter, Event, Options, and the Transparent WebM Converter at the bottom.
  • Middle: your layers, in the tabs Layers and Background, with Add Character and Add Image.
  • Right: the Stage, where you see and arrange how it looks, and the Result tab. At the bottom: Reset, Camera and Share. There is no Process button: Camera is how you test (see Take a test photo).

Set the aspect ratio first

Set Aspect Ratio to match your camera and print before you place any character: Auto, 1:1, 2:3, 3:4, 9:16, 3:2, 4:3 or 16:9. For an upright (portrait) camera, that's usually 9:16 Portrait.

Important

Characters are placed and sized against the frame. They keep their proportions, but if you change the aspect ratio afterwards, their position and size in the photo shift and you'll have to rearrange them. On Auto the photo keeps the camera's own shape, but the stage has to guess the frame (it assumes 3:2 landscape), so placement won't be exact. Pick a real shape for exact placement.

Add a sample character

No character yet? Q-Booth has free sample characters to try (people, animals and cartoon characters).

  1. Click Add Character › Sample characters…. The Sample Characters window opens.
  2. Pick a character, for example Football, and click Download & Add. It downloads the first time (an internet connection is needed once), then appears on the stage.
  3. Add a second one the same way, for example the Koala for the other side.

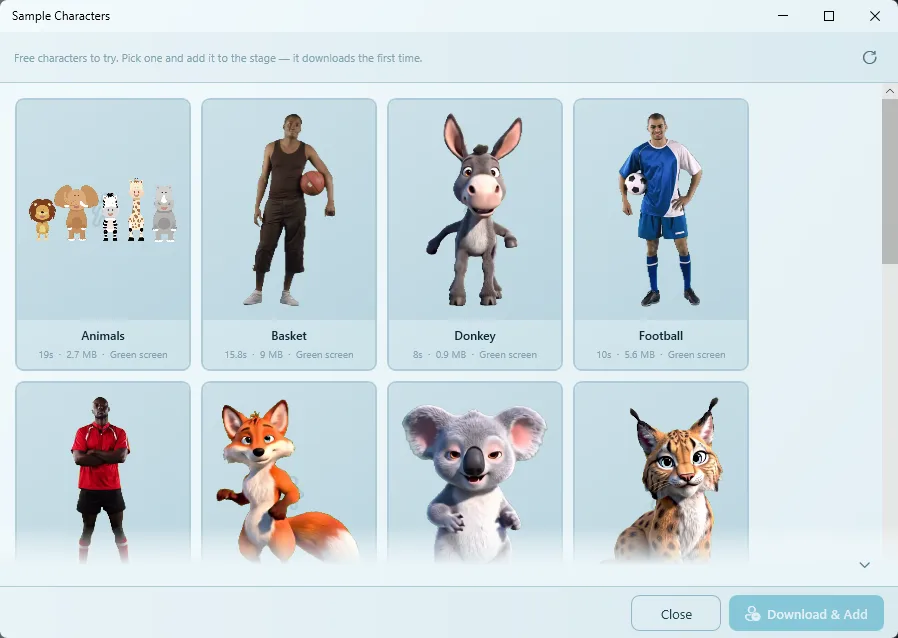

Sample Characters window with Animals, Basket, Donkey, Football, Koala and more
Free sample characters. Each card shows the length, size and type (for example Green screen).

Click a card to select it, then press Download & Add (the first time) or Add to Stage (already downloaded); double-clicking a card does the same. You can Cancel a download in progress. The list needs internet; offline it shows the list from last time, and characters you already downloaded keep working. If the list won't load (Couldn't load the samples. Check the internet connection and try again.), press Retry or the refresh button at the top right.

A new character lands in the middle of the frame at about 60% of the frame height, and starts walking in on the stage right away.

Place the characters

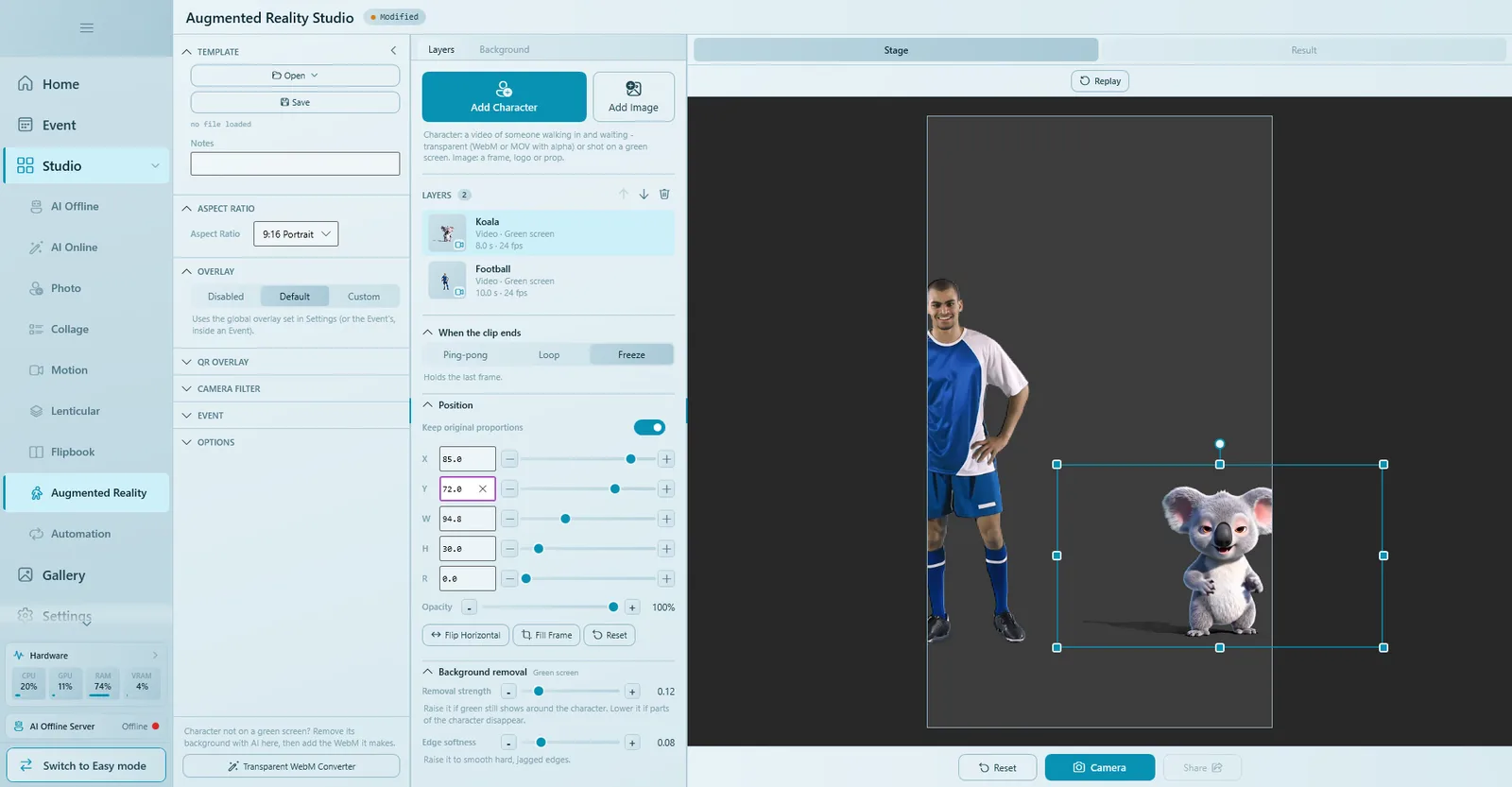

Augmented Reality Studio with a football player on the left and a koala on the right of a 9:16 stage
Footballer on the left, koala on the right: the middle stays free for the guests.
  1. Select a character in the Layers list (or click it on the stage).
  2. Drag it to move it, and pull a corner or side handle to resize it (side handles stretch one side only). Or type exact values under Position.
  3. Leave the middle of the frame free for your guests: one character on the left, one on the right.
  4. Flip Horizontal turns a character around so it faces the guests.
  5. Click Replay above the stage to play the walk-in again.

Stage shortcuts

ActionWhat it does
Drag the round handle above the layerRotate. It snaps to 90°; hold Shift for 15° steps.
Mouse wheel over the selected layerScale it.
Arrow keysNudge the layer; hold Shift for bigger steps.
Shift while dragging a handleKeeps proportions even when Keep original proportions is off.
DeleteDeletes the selected layer.
EscDeselects.

Position controls

ControlWhat it does
Keep original proportionsOn: width and height resize together. Off: stretch the width or height on its own.
X, Y, W, H, RX / Y is the position of the layer's centre, W / H the width and height, all in % of the frame. R is the rotation.
OpacityHow see-through the layer is (0–100%).
Flip HorizontalMirror the layer (a character walking in from the left now walks in from the right).
Fill FrameMakes the layer as big as the frame. With Keep original proportions on, it grows until one side touches the edge; with it off, it stretches to cover the frame exactly (for a frame PNG of a different shape).
ResetBack to the original size and shape and its starting spot.

In the Layers list the top row is the front-most layer. Use Move up / Move down to change which layer covers which, and the bin to delete one. Each row shows the type, for example "Video · Green screen" (with its length and frame rate) or "Image".

When the clip ends

A character clip has a fixed length. Under When the clip ends, choose what happens after it:

OptionBehaviour
FreezeHolds the last frame. The character stands still in its final pose.
LoopPlays the whole clip from the start, again and again.
Ping-pongPlays the clip once, then goes back and forth over the end so the character keeps moving. Ping-pong from sets where that back-and-forth starts (for example 9 s in a 10-second clip).

With Loop the character walks in again each time the clip restarts, so for a walk-in clip Freeze or Ping-pong usually looks better. On the camera, the walk-in starts when the camera screen opens, and whatever pose is on screen when the photo is taken is the pose in the photo.

Take a test photo

The studio has no Process button and no way to test with a picture from your PC: the characters' frozen pose only exists for a real camera shot. So testing is always a real photo.

  1. Press Camera. The characters play live over the camera, exactly as guests will see them. If BTS is on, it records during the countdown.
  2. Shoot, check the photo, and press OK (or Retake: the walk-in starts again). The button shows Processing… while Q-Booth works.
  3. The finished picture appears in the Result tab. Use the arrows to step through the results: first the photo (guest plus characters and images, then overlay and QR), then the BTS video if it's on, then the original photo if it's on.

After a test, the stage shows your test photo behind the characters; the X at the top right of the stage (Remove test photo) clears it.

Use your own green-screen character

  1. Choose Add Character › File (or Gallery, or one of the Recent Files) and pick your video. Accepted formats: MP4, MOV, M4V, WebM, AVI and MKV, either transparent (WebM or MOV with a see-through background) or shot on a green or blue screen.
  2. While the clip is added you see Preparing video.... Wait for it to finish before saving or testing, otherwise you get A video is still being prepared. Try again in a moment.
  3. For a green- or blue-screen video, the screen colour is detected and removed automatically. The Background removal section shows the clip type: Transparent, Green screen, Blue screen or Color key.
  4. If some green still shows around the edges, raise Removal strength. If parts of the character disappear, lower it.
  5. Edge softness smooths hard, jagged edges.

A good character clip: the person walks in from the side, stops in a natural pose and waits. Light the green screen evenly and avoid green clothing.

Important

If the clip has a normal background (not transparent, not green or blue), a No Green Screen Found warning appears: the background can't be removed cleanly. You can still add it, but the result usually looks bad. Remove the background first with the Transparent WebM Converter (below), then add the WebM it makes. If the video can't be read at all, you see This video could not be read. Try an MP4 or MOV file.

Transparent WebM Converter

You can also turn a clip into a transparent WebM first, then add the WebM like any other character. Click Transparent WebM Converter at the bottom left (it's also in Settings › Other).

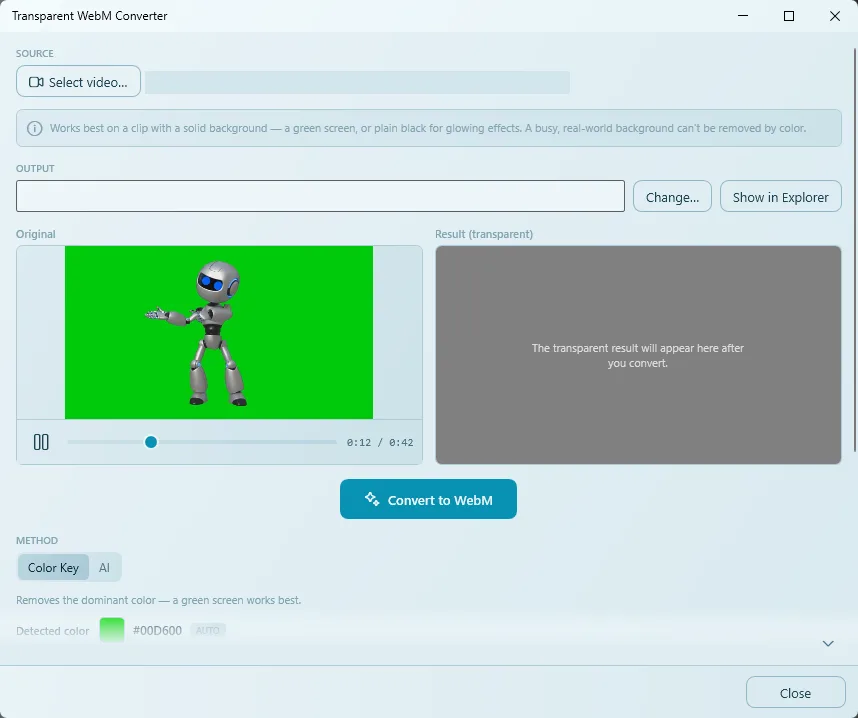

Transparent WebM Converter with a green-screen robot clip, Convert to WebM button and Method Color Key or AI
The converter: source on the left, transparent result on the right.
  1. Click Select video… and choose the clip. Check the Output location (Change… to choose another).
  2. Choose a Method:
    • Color Key removes a solid background colour, such as green. The Detected color is found automatically. Adjust Tolerance (raise it if background still shows at the edges) and Softness (higher = smoother edges, good for hair).
    • AI finds the person even without a green screen. It works frame by frame, so it is slow: a few minutes, much longer without a graphics card.
  3. Use Trim (Start / End) to convert only the part you need.
  4. Press Convert to WebM. The result appears under Result (transparent). It is saved next to the original video as name_transparent.webm; Show in Explorer opens its folder.
  5. Add the WebM with Add Character › File.
Note

Color Key works best on a clip with a solid background: a green screen, or plain black for glowing effects. A busy, real-world background cannot be removed by colour; use AI for that.

Images and background

  • Add Image places a still picture (a frame, logo or prop) as a layer, from the clipboard, gallery, a file or a recent file. PNG, JPG and WebP work; use a transparent PNG for anything that isn't a full rectangle. A new image lands in the top-left corner at logo size; for a frame PNG that should cover the whole photo, press Fill Frame. Every layer, character or image, appears in the final photo.
  • The Background tab can replace the guest's background: Original (the default) keeps it, Change BG cuts the guest out and puts them on a Background Image you choose, with the characters on top. Pick the cutout Model: Standard (very fast, but parts of the photo can sometimes come out see-through) or Detailed (clearly better, fast with a graphics card, slower without). If the model isn't on the PC yet, press Download model first.
  • Overlay goes on top of everything, characters included. Since 5.9.6.1, a Custom overlay has the Put the photo inside the frame's window switch, which puts the photo inside the frame's window (see Put the photo inside a frame). The Include original photo overlay has the same switch. QR Overlay and Camera Filter work as in Photo Studio, including the Beauty Filter row under Camera Filter (since 5.9.0.0: Use Global / Off / Custom, saved inside the template; guests can still turn it off). The QR Overlay needs Web QR set up in Settings › QR Share, or no QR is added.

Options and the BTS video

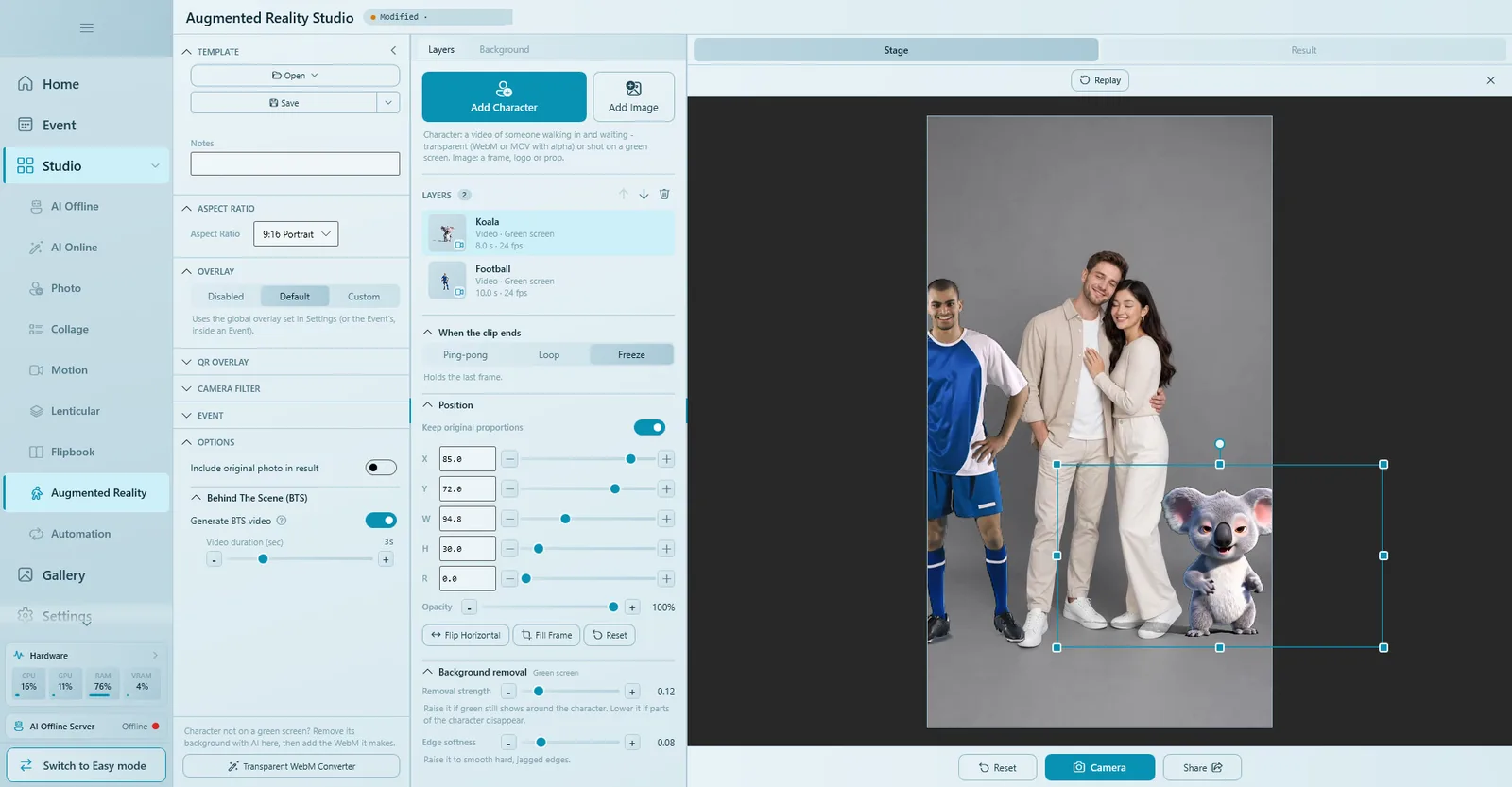

Options with Include original photo in result and Generate BTS video turned on, video duration 3 seconds
Options: the original photo and the behind-the-scenes video.
OptionWhat it does
Include original photo in resultAlso gives guests the plain camera photo, without the characters. Since 5.9.4.0, turning it on shows an Overlay picker for that original photo: Disabled (no overlay, the only behaviour before), Default (the same overlay the result got) or Custom (pick a PNG just for the original). It is the same picker as in Photo Studio.
Behind The Scene (BTS) › Generate BTS videoRecords the live view, characters included, during the countdown, as an extra video result with the overlay on it. The countdown lasts as long as the Video duration (sec) (1–10 seconds, default 3).

Caption, cover and save

  1. Under Event, give the template a caption and a cover image.
  2. Click Save. Augmented Reality templates are saved as .qsg. A template with no layers can't be saved (Add at least one character or image first.).

Add it to an event

In Expert mode

  1. Open your event and go to Templates.
  2. Click Open File and choose the .qsg file, or From Gallery.
  3. Or click Create in Studio, pick Augmented Reality, build it right there, and click Save & Return.

In Easy Mode

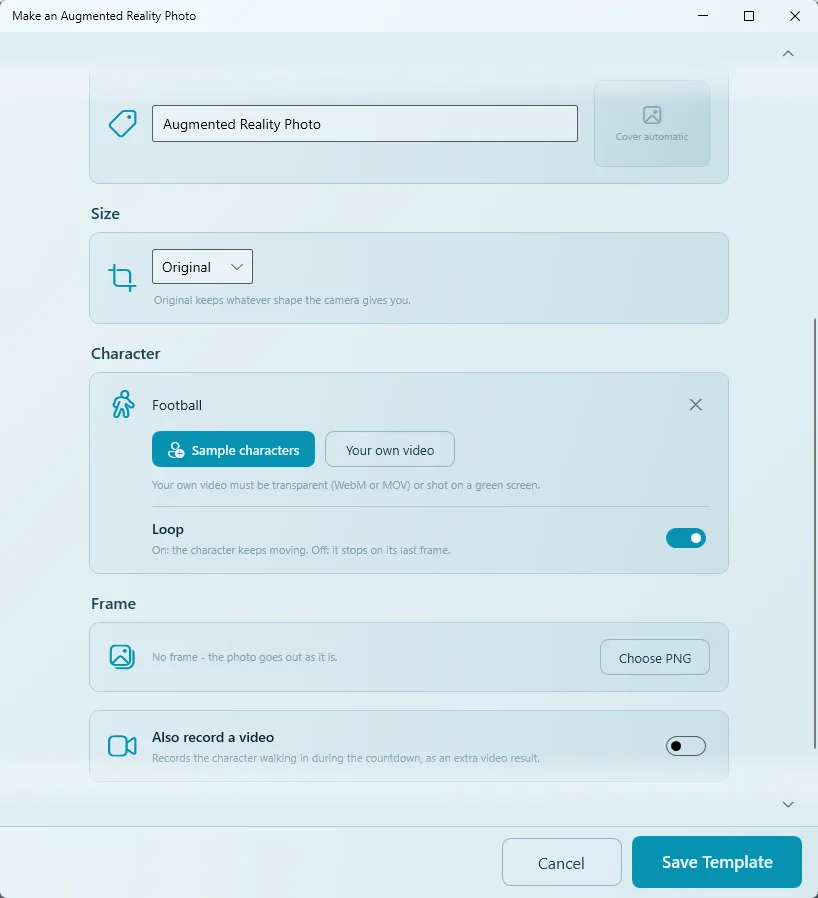

Make an Augmented Reality Photo window in Easy Mode with Size, Character, Loop, Frame and Also record a video
The Easy Mode Augmented Reality card: one character, a frame and an optional video.
  1. In the event wizard, at Choose your templates, click the Augmented Reality card among the Photo choices (it shows a demo badge if the add-on is missing). The Make an Augmented Reality Photo window opens.
  2. Set the Size (photo shape).
  3. Under Character, choose Sample characters or Your own video (transparent WebM/MOV or green screen).
  4. Drag the character into place on the preview; pull a corner to resize.
  5. Set Loop (on: the character keeps moving; off: it stops on its last frame), an optional Frame, and Also record a video for the BTS clip.
  6. Click Save Template.

Easy Mode uses one character and no rotation. For more characters, images, rotation or the background tab, use the studio.

Inside a Collage

Since 5.9.4.0, a Collage Studio Studio Template layer can use an AR template (type Augmented Reality). A strip can then pose the guest with a different character in each shot. The rules and the BTS options are in Collage Studio.

What guests see

  1. The guest picks the template.
  2. The characters walk in on the camera screen; the countdown runs.
  3. The photo is taken with everyone in the frame, the characters frozen in their pose.
  4. The result comes with the behind-the-scenes video (if enabled) and a QR code to take it home.

One template makes one photo. If Retake is pressed, the characters walk in again. When the event starts, Q-Booth prepares the characters during the loading screen, so the first guest already sees them walking in.

Tips

  • Set the aspect ratio before you place characters.
  • Keep the middle of the frame free for your guests.
  • Use Freeze for a calm final pose, Ping-pong to keep the character alive while guests get ready.
  • Always take a test photo with the real camera, at the venue, before the event.

Common problems

The characters are in a different spot or size in the photo than on the stage.

The aspect ratio is on Auto, doesn't match the camera, or was changed after you placed them. Characters keep their proportions, but their position and size follow the frame. Set the correct Aspect Ratio, then click Reset on each character and place it again.

"No Green Screen Found" when adding a clip.

The video has a normal background. Remove it first with the Transparent WebM Converter (AI method), then add the WebM.

"A video is still being prepared."

Wait for Preparing video... to finish, then try again.

The character walks out or is in the wrong pose at the shutter.

Set When the clip ends to Freeze, or Ping-pong with Ping-pong from near the end of the clip.

There is no QR on the photo.

Web QR isn't set up. Go to Settings › QR Share › Web QR.

"The model file needed to run this is missing" with Change BG.

On the Background tab, download the model first. If it says Please select a background image for the Change Background option., pick a Background Image.

There is a watermark on the AR photo or video.

The license is Basic or Advanced without the Augmented Reality add-on, or a demo license. Pro includes it.

A green line shows around the character.

Raise Removal strength a little and add some Edge softness. Or convert the clip with the Transparent WebM Converter and adjust Tolerance.

Parts of the character disappear.

Removal strength is too high, or the character wears something green. Lower the strength, or re-shoot.

"This video could not be read."

Try an MP4 or MOV file, or convert the clip to WebM with the converter.

The sample list does not load.

Samples need an internet connection the first time. Check the connection and try again; characters you already downloaded still work offline.
