Settings: Overlay & Filters

Set an app-wide default frame for every aspect ratio, print a QR code on results, manage the camera filters guests can pick, and set up the beauty filter.

11 min read Updated 8 Nov 2026

The Overlay & Filters tab holds the app-wide defaults for four things: the frame (overlay) laid over every result, the QR code printed on results, the camera filter presets guests can choose, and the beauty filter. Events and templates can override these defaults — this tab is the safety net when nothing else is set.

Note

If the Overlay & Filters tab is missing, turn on Show all settings at the bottom left of the App Settings window.

The cards on this tab

Since 5.9.0.0 the tab is a set of cards: Overlay and QR on Result on top, Camera Filter and Beauty Filter below. Each card shows a short summary, and its Configure button opens the full settings.

  • Overlay shows Status (On / Off, from Enable overlay by default), how many shapes have a file, and a small shape per row that lights up when it has one.
  • QR on Result is switched on right on its card; Configure appears while it is on.
  • Camera Filter (called Filter Presets before 5.9.0.0) shows Total Preset and Active Preset.
  • Beauty Filter shows the app's beauty look.

Before 5.9.0.0 the overlay rows sat directly on the tab.

How overlays work

An overlay is a PNG frame that Q-Booth lays on top of the finished result — your logo, event name, date or a decorative border. The photo shows through the transparent part of the PNG.

There are three levels. The most specific one wins:

PriorityLevelWhere you set it
1 (strongest)Template overlayIn the template, in its studio (Overlay: Default / Disabled / Custom).
2Event overlayIn the event editor — see Event Overlay.
3 (weakest)Global overlayHere, in Settings › Overlay & Filters.

A template whose overlay is set to Default uses the event's overlay when it runs inside an event, and this global overlay otherwise. Think of the global overlay as a fallback frame for when an operator forgets to set one for the event.

Tip

Don't confuse an overlay with a collage frame. In Collage Studio the frame is a layer inside the design; the overlay is a separate image added on top of the finished result.

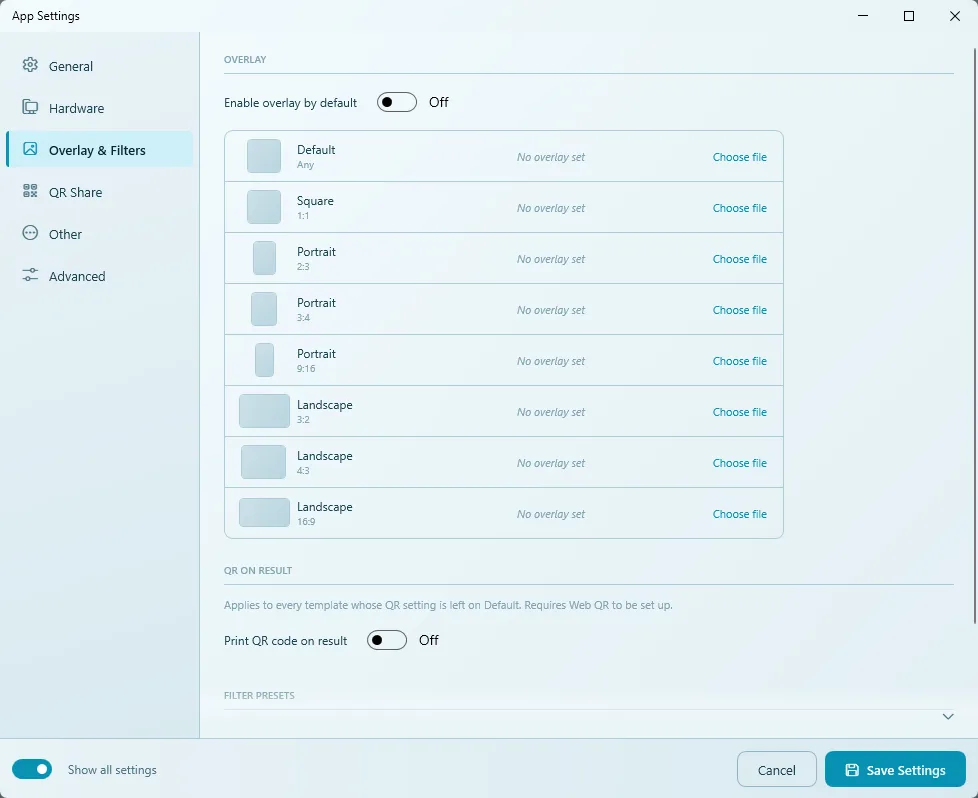

Overlay & Filters page with the Overlay, QR on Result, Camera Filter and Beauty Filter cards
The Overlay & Filters page. The Overlay card's Configure opens the overlay rows, one per aspect ratio.

Set a global overlay

  1. Open Settings › Overlay & Filters and click Configure on the Overlay card (since 5.9.0.0; on older versions the rows are on the tab itself).
  2. Find the row for the ratio of your templates (e.g. Portrait 2:3) and click Choose file.
  3. Select your PNG frame. A thumbnail replaces No overlay set. Use Change later to swap it.
  4. Repeat for other ratios you use. Fill Default (Any) as a catch-all for ratios without their own file.
  5. Turn on Enable overlay by default. When on, every template whose Overlay is left on Default uses these files. When off, those templates get no overlay (outside of an event).
  6. Click Save Settings.

Overlay slots

SlotUsed for results with ratioSuggested PNG size
Default (Any)Any ratio whose own slot is empty—
Square 1:11:11920 × 1920
Portrait 2:32:31280 × 1920
Portrait 3:43:41440 × 1920
Portrait 9:169:161080 × 1920
Landscape 3:23:21920 × 1280
Landscape 4:34:31920 × 1440
Landscape 16:916:91920 × 1080

Q-Booth looks at the shape of the finished photo and uses the matching row. If that row is empty, or the photo is an unusual shape, it uses Default. Only PNG files are accepted; the X on a row clears it.

Put the photo inside the frame's window

Since 5.9.6.1 each row with a file has an In window switch, and Edit area once it is on. It puts the photo inside that frame's window instead of under the whole overlay, with the same tool as in the studios.

  • Each shape has its own box, used whenever that row's file is used.
  • Picking or clearing a row's file clears its box.
  • A template's own Photo Area wins over this one.

How the box works: Put the photo inside a frame.

Preparing the overlay file

  • Use a PNG with transparency. Everything transparent shows the photo; everything opaque covers it.
  • Make it the same ratio as the slot, ideally at the output size above, so it isn't stretched. Don't make it much bigger than the print — huge frame files slow the booth down.
  • Keep important text away from the very edges if you print with Fill Page and Crop (see Print Size Mode).
  • Check the result once with a real photo — faces should not be hidden behind the frame.

QR on Result

Prints a scannable QR code of the photo's online link onto the result image, so guests can scan the printed photo to download the digital copy (since 5.5.0.0).

  1. Set up Web QR first in QR Share. Without it, a warning says "Web QR is not set up yet, so no QR will be added."
  2. Turn on Print QR code on result on the QR on Result card.
  3. Click the card's Configure button (since 5.9.0.0; before, Position & Size...) and choose the corner (Top-Left, Top-Right, Bottom-Left, Bottom-Right), Margin X, Margin Y and QR size (in px). You can also drag the QR in the preview and drag its corner to resize (since 5.6.1.0). The row then shows a short summary of the position and size.
  4. Click Save Settings.

This applies to every template whose QR Overlay is left on Default. Inside an event, the event's own QR setting is used instead of this one — it's on the event editor's Overlay page, see Event Overlay.

Camera Filter

Filter presets are camera "looks" — colour grades and textures — that guests can pick from the filter strip on the Camera Page. The Camera Filter card (called Filter Presets before 5.9.0.0) shows the Total Preset and Active Preset counts. It's the same set a template's own Camera Filter setting picks from.

  1. Click Configure on the Camera Filter card. The Camera Filter window opens (called Preset Filter Settings before 5.9.0.0).
  2. Click + New Preset, or select an existing preset under Saved Presets.
  3. On the LUT tab, choose a LUT Filter (colour grade).
  4. On the Texture tab, optionally choose a Texture Overlay and set its Opacity and Blend Mode (see below).
  5. Check the live preview on the right (see The preview below).
  6. Tick the presets that should be available to guests (active).
  7. Click Save Preset Filter. This window saves on its own button, separately from Save Settings.
Blend ModeBest for
ScreenLight leaks and dust.
MultiplyScratches and grunge.
OverlayHeavy textures.
SrcOverNormal, solid layer.

The preview

Since 5.9.0.0, along the top of the preview you pick what to try the filter on: Sample photo, My photo (your own picture; the folder button next to it picks another) or Live camera (the booth's camera, the same way the event shows it; the camera is used only while this is picked).

The pill in the corner of the preview switches how before and after are shown: Split (drag the line), Side by side (photos only) or Before / After (one at a time — click the picture to switch). Older versions had one split view and a Change preview image button instead.

Processing Engine, at the bottom of the window, is Auto, CPU or GPU. Leave it on Auto unless filters fail on this computer.

Built inIncluded
Film LUTs (.cube)35mm Portrait, B&W, Bold Film, Coastal Film, Elite Chrome, Fashion Film, Free Spirit, Gold 200, Kodacrome 64, Moody Film, Moody Grade, Moody Stock, Pastel Morning, Polaroid Color, Warm Tones
TexturesGrunge, Light Leak, Smoke, Noise, Paper

To add your own: use Add to import a .cube LUT or a JPG/PNG texture, or Download for more. If you copy files into the filter folders by hand, click Rescan. A LUT's file name becomes the preset name.

Filters apply only to photos taken with the camera — not to files picked from disk, the gallery or the clipboard. A template can carry its own filter set (Camera Filter: Use Global / Off / Custom, since 5.3.0.0); Use Global means the active presets here. When guests see the filters (before or after the shot) is set per event, on the Camera page's filter element.

Note

The Original preset (no filter) is read-only. A filter stored inside a template can be renamed and its blend/opacity adjusted, but its LUT and texture are locked.

Beauty Filter

Since 5.9.0.0 Q-Booth has a phone-camera style beauty effect. It smooths skin and brightens every face the camera sees — live on the screen, in the photo and in recorded video (behind-the-scenes clips too). It works on top of any camera filter, Original included. A new install has it Off.

  1. Click Configure on the Beauty Filter card. The Beauty Filter window opens.
  2. The first time, a Download card asks for the face detection files. Download them (see The download below).
  3. On the right, pick a style or move the sliders.
  4. Check the before / after preview on the left. It has the same Sample photo / My photo / Live camera choice and Split / Side by side / Before / After pill as the Camera Filter window (side by side is for photos only).
  5. Click Use this look, then Save Settings.
The Beauty Filter window with the sample photo split into before and after, the six styles and the four sliders
The Beauty Filter window: before / after preview on the left, styles and sliders on the right.
StyleWhat it does
OffNo beauty effect.
CustomYour own slider values. Moving a slider switches to Custom; clicking Custom keeps the current values so you can fine-tune them.
NaturalSkin only.
SoftSkin plus light shaping.
GlamThe full look.
GlowBright, even skin.

The four sliders are Smooth skin, Brighten, Bigger eyes and Slimmer face. Bigger eyes and slimmer face apply to everyone in the photo.

The Beauty Filter window on the live camera with the Custom style and the sliders set
Live camera with a Custom look: check the effect on the booth's own camera before you save.

The download

The face detection files are part of the "vision pack": about 6 MB, downloaded once per PC (only about 0.2 MB if gesture control already downloaded its files). It needs internet once. A PC set up with the installer from 23-10-2026 or newer already has them. Until the files are downloaded the beauty filter does nothing — the booth runs normally without it.

Templates and guests

  • Every studio's Camera Filter panel has a Beauty Filter row: Use Global (the look set here), Off, or Custom (the template's own look, saved inside the template).
  • A sub-template's choice wins over its parent template, and the template's over the look set here — the same as the camera filter. Events have no beauty setting of their own.
  • In Flipbook, Lenticular and Motion the camera always uses the look set here.
  • When a shot has beauty, a Beauty tile shows first in the event's filter strip (even with 0 or 1 filters). Guests tap it to turn beauty off and on; it starts on. A Camera page without a filter strip simply keeps beauty on.
  • The studio camera window gets a Beauty Filter switch.
A template's Camera Filter panel with the Beauty Filter row set to Custom and its look summary
A template with its own look: Beauty Filter › Custom, then Configure….
The guest Camera Page of an event with the Beauty tile in the filter strip on the right
At the booth: the Beauty tile at the top of the filter strip turns the effect off and on.

It runs on the graphics card when it can, otherwise on the CPU — check that the live view stays smooth on the booth laptop. Like the camera filter, it applies only to photos taken with the camera. GoPro clips recorded on the camera's own card get no beauty (the GoPro's live view and photos do).

Note

Face Restoration in the studios is something different: it cleans up the finished photo, and is slower. The beauty filter works live, on the camera.

Troubleshooting

The overlay doesn't appear on results.

Check that Enable overlay by default is on, that the slot for your template's ratio (or Default) has a file, and that the event or template doesn't override it with its own overlay or with Disabled.

The frame looks stretched or misaligned.

The PNG's ratio doesn't match the slot. Export the frame at the ratio of the slot (see the table above).

The frame covers the whole photo.

The PNG has no transparent area (e.g. it was saved as JPG or with a white background). Re-export it as a PNG with a transparent window.

With In window on, the photo doesn't show in the frame.

The frame's window isn't transparent in the PNG. Cut it out as transparent. See Put the photo inside a frame.

No QR code is printed on the result.

Web QR isn't set up, or the template's QR setting is Disabled. Set up Web QR in QR Share and test it with Test QR.

Guests don't see my filters.

Make sure the presets are ticked as active, that the template's Camera Filter isn't Off, and that the event's Camera Page has the filter strip element — see Page Designer. The strip only appears when there are 2 or more filters to choose from.

The filter list is empty.

The built-in files are missing. Click Rescan, or Download the LUT / texture pack.

The beauty filter does nothing.

The face detection files aren't downloaded (open Configure on the Beauty Filter card), the template's Beauty Filter is Off, the guest turned the Beauty tile off, or no face is visible.

There are two QR codes on my collage.

The collage has a QR Code layer. Set that template's QR Overlay to Disabled.
