Quick Start: Your First Event

Go from zero to a running booth: create an event, add templates, set the look, test it and launch it.

8 min read Updated 8 Nov 2026 Watch the video (5:29)

From zero to a running booth: this walkthrough creates an event, adds a template, sets the look, tests everything and launches the booth for guests. Use Easy Mode for the fastest route, or Expert Mode for full control — both are covered below.

Video tutorial · 5:29 Introduction & Easy Mode Also in: Bahasa Indonesia · 中文

Before you start

  • Q-Booth is installed and activated (see Installation).
  • Your camera is connected and tested, and ideally the printer and sharing too (see First-time setup).
  • You know the screen shape of the booth: landscape or portrait.
Note

Remember the core idea: an event is what runs at the booth, and it is filled with templates made in the studios. An event with no templates cannot be launched. See Events and Studios.

Route 1: Easy Mode wizard (fastest)

If the button at the bottom of the main menu says Switch to Easy mode, click it first.

  1. Click Event in the main menu. The page asks What are you running today? Under New Event, click Create. The wizard opens with four steps: Event, Templates, Look, Start.
  2. Event: type the Event name, optionally add a Cover image, and click Next.
  3. Templates: pick a card to make a template — for example Photo. Set its size, choose a frame (a PNG with a transparent area where the photo shows through) if you want one, and click Save Template. For a frame with one window for the photo (a picture frame, a poster), turn on Put the photo inside the frame's window under the frame (since 5.9.6.1; see Put the photo inside a frame). Repeat for more templates, such as a Strip / Collage or a Face Swap. Your templates appear in the list on the right. For an AI Photo template, Build my prompt (since 5.8.0.0, the big button above the prompt box) lets you pick what you want from lists instead of typing a prompt. Want finished designs? Get ready-made templates (since 5.8.0.0, the big cloud button at the top, above the cards) opens the Template Gallery on the Cloud tab so you can download ready-made templates; switch to Local to add ones you already have. Click Next.
  4. Look: choose the Screen shape (Landscape or Portrait, the way the booth monitor stands) and a Background (an image or a plain colour) for every screen, then click any screen to change its texts, fonts and colours. Everything here is optional — the defaults already work. Click Next.
  5. Start: check that the camera, printer and monitor are set. If something shows Not set, click Open Settings. Optional: switch on Gesture control (since 5.9.0.0) so guests can use their hands instead of the screen — an open hand, then a held fist, takes the photo; in review, a thumbs up finishes and a thumbs down retakes. Try it opens the camera so you can test the gestures yourself. The first time, a Download button fetches the vision pack files (about 10 MB, once per computer). A computer set up with an installer from 23-10-2026 or newer already has them.
  6. Read How to get back out, then click Start Booth. The event runs full screen.

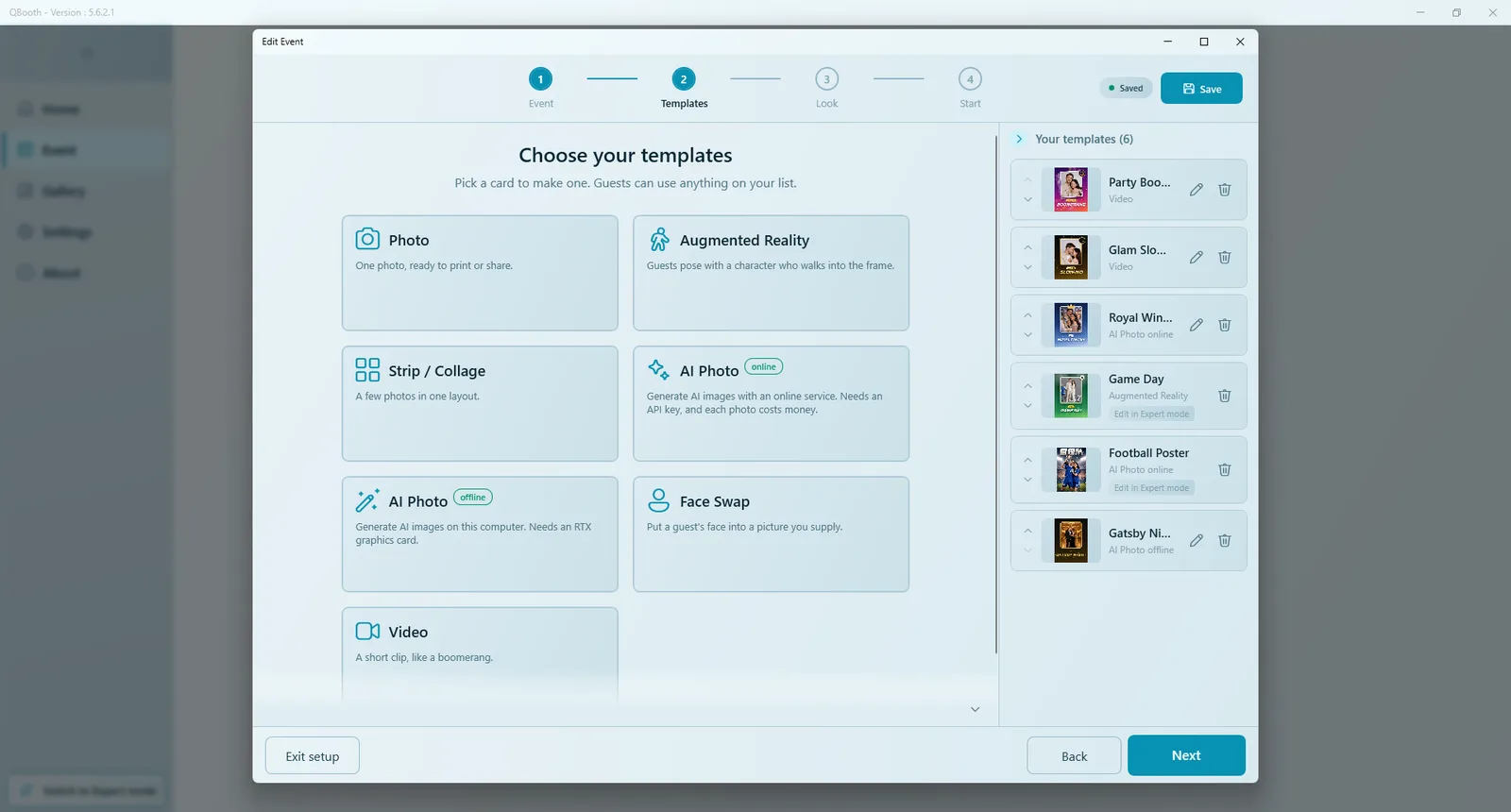

Easy Mode wizard Templates step with template cards and the Your templates list on the right
Easy Mode, step 2: pick a card to make a template. Your templates are listed on the right.

Templates are saved straight away; the name, cover, screen shape and look need the wizard's Save (top right). Start Booth does not save. Next time, start the same event from the Event page: pick it under Created events and click Start. Want a finished event instead? Download Events (top right of the list) offers ready-made events to download. Now jump to Test the booth.

Route 2: Expert Mode

Step 1 — Create the event

  1. Click Event in the main menu, then click the New Event card.
  2. In Start a New Event, pick Blank or a ready-made theme. A theme fills every kiosk screen with a finished design, which is the quickest way to a good-looking booth.
  3. Click Create Event (or double-click the card). The Event Editor opens on GENERAL › Settings.
  4. Type the EVENT NAME, optionally choose a cover image, and pick the ASPECT RATIO that matches the booth monitor (for example 16:9 landscape or 9:16 portrait) and the output monitor.

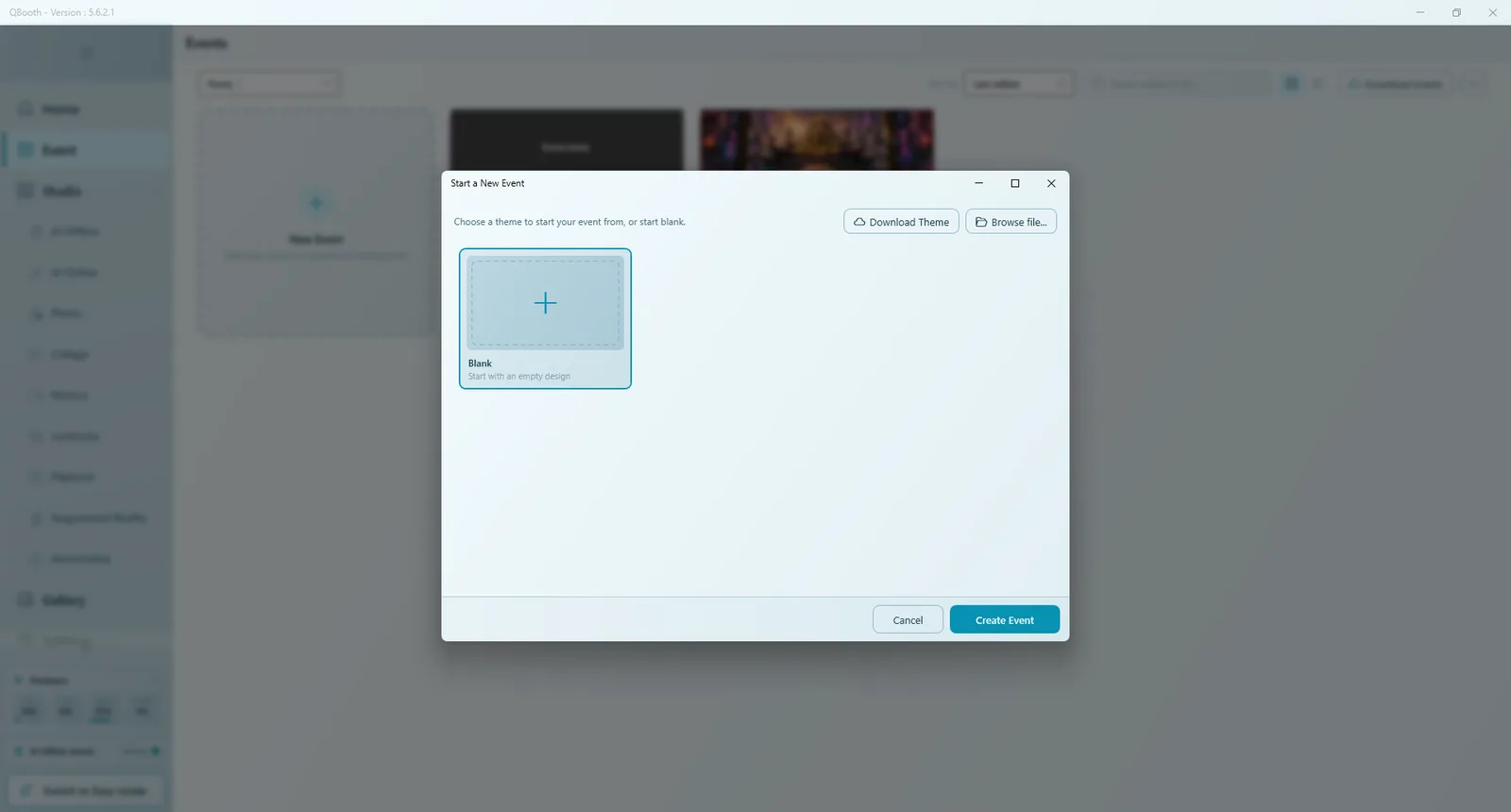

Start a New Event dialog with the Blank card selected and the Create Event button
Start from Blank or from a theme, then click Create Event.
Important

A new event is not written to disk until you click Save for the first time. The Survey and Report sections also appear only after the first save.

Prefer to start from a finished event? Download Events at the top of the event list lets you browse ready-made events and add one with Download & Import.

Step 2 — Add a template

  1. Open CONTENT › Templates. Three buttons appear at the top: Create in Studio, Open File and From Gallery.
  2. Click Create in Studio. The Select Studio To Launch dialog lists the studios your edition allows. For a first event, pick Photo — it is the simplest.
  3. The studio opens in its own window. Set the ratio and frame, check the result with Process (F5), then click Save & Return at the top of the left panel.
  4. The template appears as a new row in the Templates list. If the event has never been saved, click Save in the action bar now — the indicator changes to Saved.
Select Studio To Launch dialog listing AI Offline, Photo, Collage, Motion, AI Online, Art Studio and Lenticular, with more below
Create in Studio opens the studio picker.

Already have template files, or want ready-made ones? Use Open File (several files at once) or From Gallery. Use Create in Studio for one-off templates, and build reusable templates from the Studio menu instead. Everything about templates is in Templates.

Tip

Once the event has been saved at least once, templates and categories save themselves the moment you change them (since 5.3.1.0) — no extra Save needed after Save & Return. A brand-new event that was never saved keeps nothing until you click Save.

Step 3 — Check the look

If you started from a theme, every screen is already designed. To adjust it, open any page under DESIGN — for example the Welcome Page — change texts, images and buttons, and press Preview (F9) to see the page as guests will. The guests see these pages in order: Welcome, Template Picker, Input (only if the template asks something), Camera, Processing and Result. See Page designer.

Step 4 — Decide how guests get their photos

  • In GENERAL › Settings, RESULT DELIVERY decides how guests get their result: Direct (on screen), Email a link, Text a link (since 5.9.2.0, by SMS through your own Twilio account), Manual pickup, or Scan a QR now (the guest scans a code at the booth and leaves; the link works once the result is finished). With more than one switched on, guests choose at the booth. See Event settings.
  • Under OTHERS, Printing sets automatic printing, print limits and the printer, and Sharing sets the QR code and email options. See Sharing & printing.
  • The delivery methods themselves (cloud or FTP for Web QR, SMTP or API for email) are set once in Settings › QR Share.

Test the booth

Q-Booth has three ways to "run" something. Use them in this order:

ToolWhereWhat it tests
Preview (F9)Every page designerThe look of one page — no camera, no real session.
Simulate (F10)Camera Page onlyThe whole capture flow — countdown, multi-shot, retake, filters — with sample photos instead of a real camera.
Launch (F5)Event Editor, or Launch on the event cardA real session: real camera, real processing, real print, QR and email.
Important

Launch (F5) runs whatever is in the editor, including unsaved changes, but it does not save them. When a test run looks right, go back and click Save.

Launch the event

  1. Click Launch (F5) in the Event Editor, or Launch on the event's card in the event list. (In Easy Mode, Start Booth or Start does the same.)
  2. Q-Booth checks the templates first. If some can't run on this computer (for example a higher license is needed or an AI Online API key is missing), a Before You Start window lists the problems; Start Anyway continues, and a guest who picks such a template is told why. If the event has no templates, Q-Booth stops and warns you.
  3. After a short preparation pause, the event fills the screen on the selected monitor.
  4. Do one full session as a guest would: tap to start, choose a template, pose for the countdown, check the result, and print or scan the QR code.

The guest flow is: Welcome → (Survey, if any) → (Category Picker, if used) → Template Picker → (Input, if the template asks something) → Camera → Processing → Result.

Exit the event

  • Press Shift + F4, or double-click (double-tap on a touch screen) the top-right corner of the screen. If an exit PIN is set, enter it.
  • To open the gallery of the event's photos while it runs, double-click the top-left corner or press Shift + F2 (when allowed).
  • Esc does not work on purpose, so guests cannot leave the booth.

To stop guests from leaving with Alt + Tab or the Windows key, and to require a PIN to exit, see Running an event.

Before the event day

  1. Run one complete session with Launch and print one real copy.
  2. Save the event, then keep a copy from the event's Manage section: Export Event (design only) or Backup (everything).
  3. At the venue, retest the camera, a test print, Test QR and Test Send on the venue network.

The full list is in the Event checklist.
